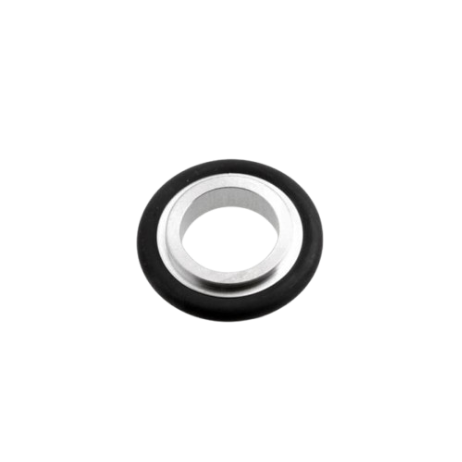

Centering Rings Adaptors with O-Ring

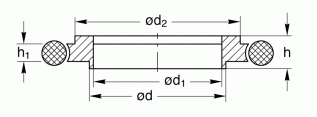

Technical Data
|
DN
|
ISO-KF
|
10/16
|
20/25
|
32/40
|
|---|---|---|---|---|
|
d
|
mm(in.)
|
12(0.47)
|
22(0.87)
|
34(1.34)
|
|
d1
|
mm(in.)
|
10(0.40)
|
20(0.79)
|
32(1.26)
|
|
d2
|
mm(in.)
|
17(0.67)
|
26(1.02)
|
41(1.61)
|
|
h
|
mm(in.)
|
8(0.31)
|
-
|
8(0.31)
|
|
h1
|
mm(in.)
|
3.9(0.15)
|
3.9(0.15)
|
3.9(0.15)
|
