Centering Rings With Fine Filter and O-Ring

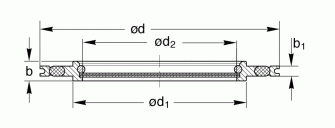

Technical Data
|
DN
|
ISO-KF
|
63
|
100
|
|---|---|---|---|
|
b
|
mm(in.)
|
8(0.31)
|
8(0.31)
|
|
b1
|
mm(in.)
|
4(0.16)
|
4(0.16)
|
|
d
|
mm(in.)
|
96(3.78)
|
128(5.04)
|
|
d1
|
mm(in.)
|
70(2.76)
|
102(4.02)
|
|
d2
|
mm(in.)
|
62(2.44)
|
94(3.7)
|
