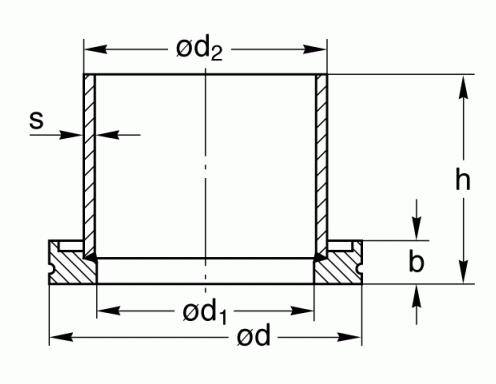

Clamp Flanges with Tubulation
Technical Data
|
DN
|
ISO-KF
|
63
|
100
|
160
|
200
|
250
|
320
|
400
|
500
|
630
|
|---|---|---|---|---|---|---|---|---|---|---|
|
d
|
mm(in.)
|
95 (3.74)
|
130 (5.12)
|
180 (7.09)
|
240 (9.45)
|
290 (11.42)
|
370 (14.57)
|
450 (17.72)
|
550 (21.56)
|
690 (27.17)
|
|
d1
|
mm(in.)
|
70 (2.76)
|
102 (4.02)
|
153 (6.02)
|
213 (8.39)
|
261 (10.28)
|
318 (12.52)
|
400 (15.75)
|
501 (19.72)
|
651 (25.63)
|
|
d2
|
mm(in.)
|
76.1 (3.00)
|
108 (4.25)
|
159 (6.26)
|
219.1(8.63)
|
267(10.51)
|
324(12.76)
|
406(15.98)
|
508(20.00)
|
660(25.98)
|
|
h
|
mm(in.)
|
100 (3.94)
|
100 (3.94)
|
100 (3.94)
|
100 (3.94)
|
100 (3.94)
|
100 (3.94)
|
100 (3.94)
|
100 (3.94)
|
100 (3.94)
|
|
s (steel)
|
mm(in.)
|
2.9 (0.11)
|
2.9 (0.09)
|
2.9 (0.09)
|
2.9 (0.09)
|
-
|
3 (0.12)
|
3 (0.12)
|
3 (0.12)
|
5(0.20)
|
|
s (stainless
steel)
|
mm(in.)
|
2.3 (0.09)
|
2.3 (0.09)
|
2.3 (0.09)
|
3(0.12)
|
3(0.12)
|
3(0.12)
|
3(0.12)
|
4(0.16)
|
5(0.20)
|
|
b
|
mm(in.)
|
12 (0.47)
|
12 (0.47)
|
12 (0.47)
|
12 (0.47)
|
12 (0.47)
|
17 (0.67)
|
17 (0.67)
|
17 (0.67)
|
22 (0.87)
|
