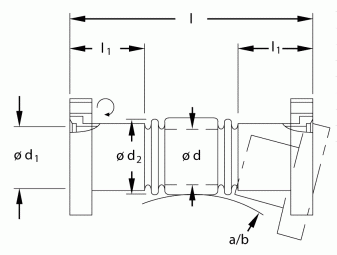

Flexible Vacuum Hoses with Flanges
Technical Data
|
DN
|
ISO-KF
|
63
|
63
|
63
|
63
|
100
|
100
|
100
|
100
|
|---|---|---|---|---|---|---|---|---|---|
|
d1
|
mm (in)
|
70 (2.76)
|
70 (2.76)
|
70 (2.76)
|
70 (2.76)
|
102 (4.02)
|
102 (4.02)
|
102 (4.02)
|
102 (4.02)
|
|
l
|
mm (in)
|
250
(9.84)
|
500
(19.6)
|
750
(29.53)
|
1000
(39.37)
|
250
(9.48)
|
500
(19.69)
|
750
(29.53)
|
1000
(39.37)
|
|
Max bending radius
with multiple bending
|
mm (in)
|
250
(9.84)
|
250
(9.84)
|
250
(9.84)
|
250
(9.84)
|
370
(14.57)
|
370
(14.57)
|
370
(14.57)
|
370
(14.57)
|
|
with single
bend
|
mm (in)
|
160
(8.30)
|
160
(8.30)
|
160
(8.30)
|
160
(8.30)
|
160
(9.45)
|
160
(9.45)
|
160
(9.45)
|
160
(9.45)
|
