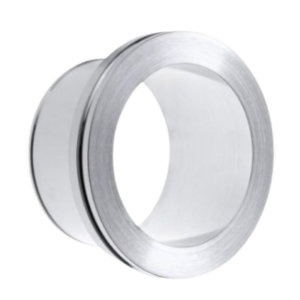

Flanges With Long Tubulation
ISO-KF
Technical Data
|
DN
|
ISO-KF
|
10
|
25
|
40
|
50
|
|---|---|---|---|---|---|
|
d1
|
mm(in.)
|
16/16 (0.63/0.63
|
30/30 (1.18/1.18)
|
45/45 (1.77/1.77)
|
55/54 (2.17/2.13)
|
|
d2
|
mm(in.)
|
12/12 (0.47/0.47)
|
26/26 (1.02/1.02)
|
41/41 (1.61/1.61)
|
51/50 (2.01/1.97)
|
|
l
|
mm(in.)
|
20 (0.79)
|
20 (0.79)
|
20 (0.79)
|
20 (0.79)
|
