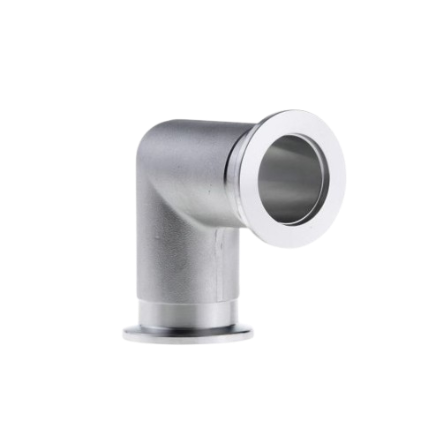

Pipe Bend 90 / Mitred Elbow 90
Technical Data
|
DN
|
ISO-KF
|
63
|
100
|
160
|
250
|
|---|---|---|---|---|---|
|
a
|
mm(in.)
|
88 (3.46)
|
108 (4.25)
|
138 (5.43)
|
208 (8.19)
|
|
d1
|
mm(in.)
|
70 (2.76)
|
102 (4.02)
|
153 (6.02)
|
261 (10.28)
|
|
Weight
|
Kg (lbs.)
|
1.1 (2.43)
|
2.2 (4.8)
|
5.9 (13.02)
|
9.9 (21.85)
|
|
Conductance
|
l/s
|
208
|
470
|
1200
|
3700
|
Technical Data
|
DN
|
ISO-KF
|
16
|
16
|
25
|
25
|
40
|
40
|
50
|
|---|---|---|---|---|---|---|---|---|
|
a
|
mm(in.)
|
40 (1.57)
|
40 (1.57)
|
50 (1.97)
|
50 (1.97)
|
65 (2.56)
|
65 (2.56)
|
70 (2.76)
|
|
d1
|
mm(in.)
|
16 (0.63)
|
15 (0.59)
|
25 (0.98)
|
25 (0.98)
|
41 (1.62)
|
41 (1.62)
|
49 (1.93)
|
|
Conductance
|
l/s
|
6.5
|
-
|
18.9
|
-
|
56.5
|
-
|
-
|
