Tees
(Stainless Steel 1.4301)

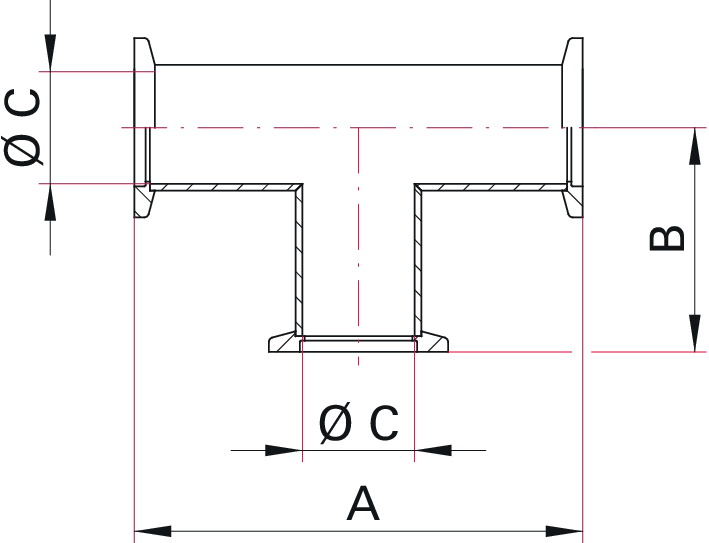

Technical Data
|
DN
|
ISO-KF
|
36
|
100
|
160
|
250
|
|---|---|---|---|---|---|
|
a
|
mm(in.)
|
88 (3.46)
|
108 (4.25)
|
138 (5.43)
|
208 (8.19)
|
|
b
|
mm(in.)
|
176 (6.93)
|
216 (8.50)
|
276 (10.87)
|
416 (16.38)
|
|
d2
|
mm(in.)
|
70 (2.76)
|
102 (4.02)
|
153 (6.02)
|
261 (10.28)
|
|
Weight
|
Kg
|
1.6 (3.53)
|
3.2 (7.06)
|
7.6 (16.78)
|
8.1 (17.88)
|
