Welding Flanges

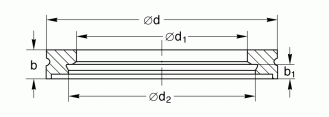

Technical Data
|
DN
|
ISO-KF
|
63
|
100
|
160
|
200
|
250
|
|---|---|---|---|---|---|---|
|
b
|
mm (in)
|
12 (0.47)
|
12 (0.47)
|
12 (0.47)
|
12 (0.47)
|
12 (0.47)
|
|
b1
|
mm (in)
|
6 (0.24)
|
6 (0.24)
|
6 (0.24)
|
6 (0.24)
|
6 (0.24)
|
|
d
|
mm (in)
|
95 (3.74)
|
130 (5.12)
|
180 (7.09)
|
240 (9.45)
|
290 (11.42)
|
|
d1
|
mm (in)
|
70 (2.76)
|
102 (4.02)
|
153 (6.02)
|
213 (8.39)
|
261 (10.28)
|
|
d2
|
mm (in.)
|
76.6 (3.02)
|
108.7 (4.28)
|
159.8 (6.29)
|
219.8 (8.65)
|
267.8 (10.54)
|
